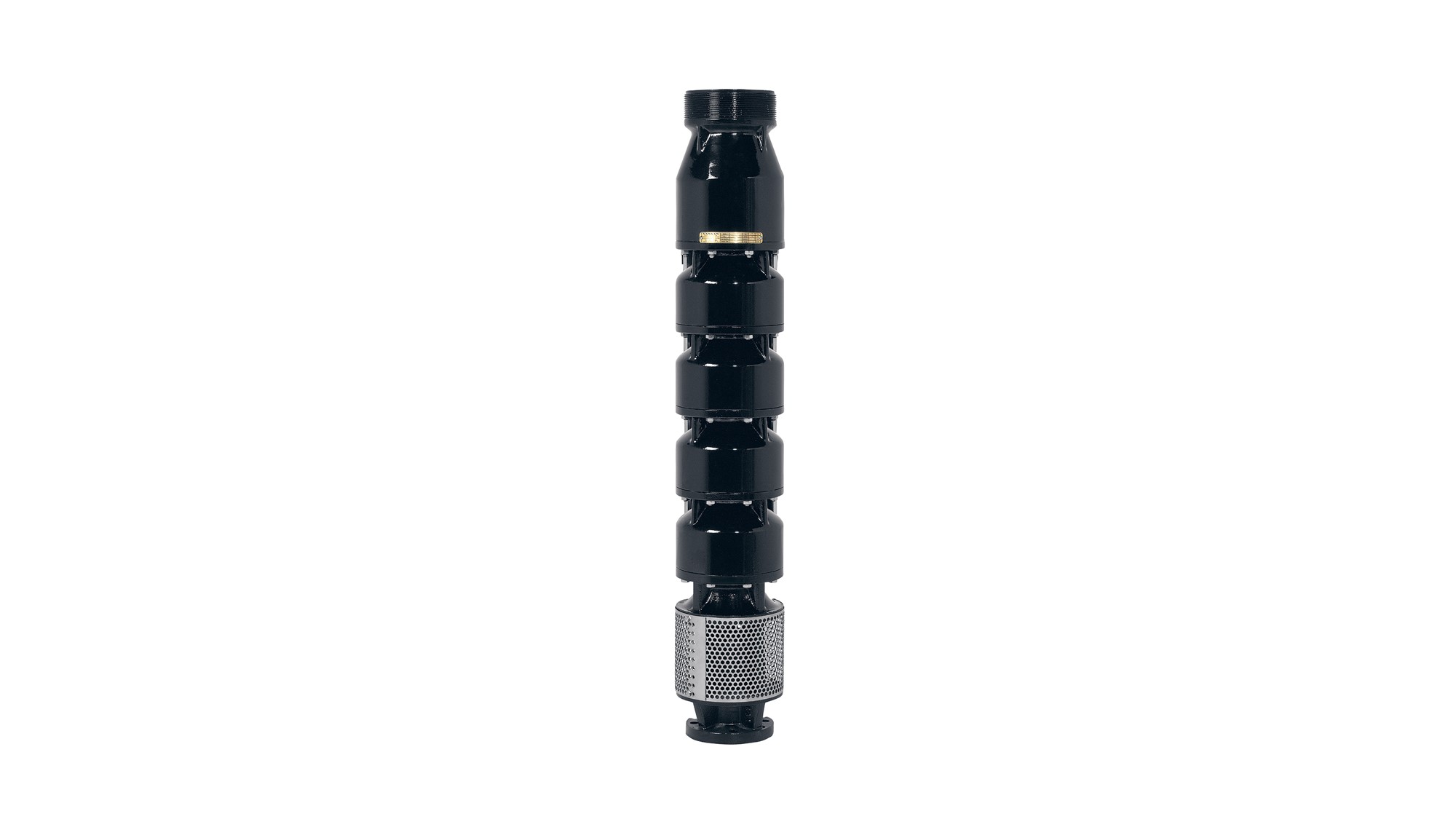

SUBMERSIBLE CASTED BOREHOLE PUMPS (6”-7”-8”-10”)
Maximum capacity 500 m³/h
Maximum head 650 m
Maximum allowable sand content 50 g/m³
Max. allowable voltage tolerance is 10%
Suitable connection in NEMA standarts
Long life and high eficiency
DETAILS
- Multi-stage submersible pump for raw water supply, groundwater lifting, pressure boosting and various industrial applications. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.
- Pump: The pump is made entirely of Cast iron DIN W.-Nr. EN-JL1040 and also suitable for horizontal installation.
- The pump is fitted with a built-in non-return valve.
- Phase: The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
