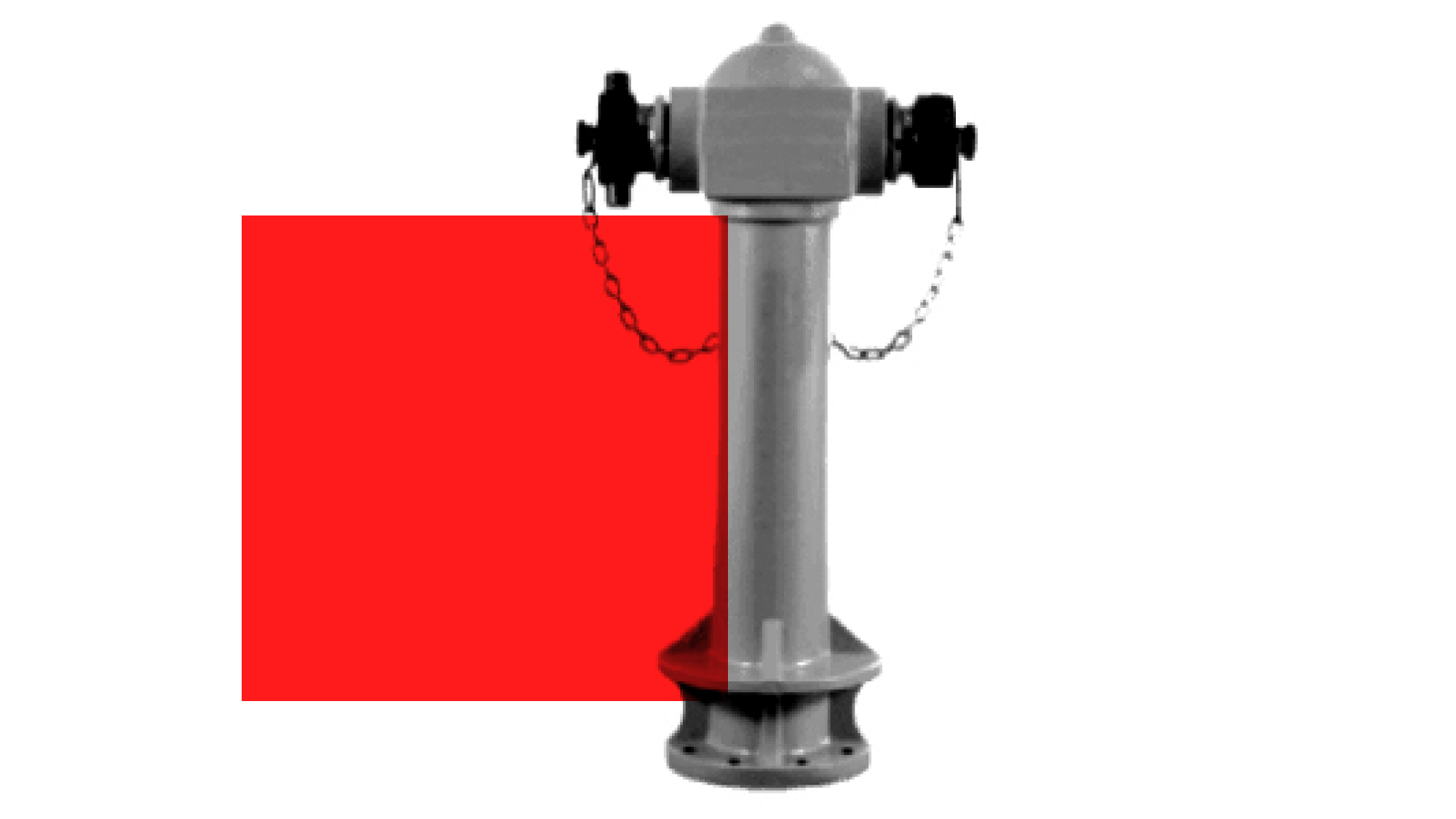

ABOVE-GROUND PILLAR FIRE HYDRANT
Body material : Cast Iron to BS 1452
Inlet : 4″ Table T BS 10 Flange
Outlet : Copper Alloy 2×2.5″ Control Valve with Female BS Inst.
Outlet
Test pressure : 30bar(435 psi)
Working pressure : 20bar(290 psi)
Adaptor: Brass /LG2(Gun Metal)
Paint Finish : Red & Yellow Epoxy Coated
DETAILS
We offer a wide range of above-ground hydrants characterised by a high level of safety. The specially designed and predetermined breaking point leaves both the hydrant and the pipeline undamaged in case of an accidental trac knock down. The connection between upper and lower barrels allow for a 360° rotation of the upper barrel including the hydrant head. The anges are assembled with special titanium bushes designed to break if something hits the hydrant. The gear is placed below the breaking point and the above-ground hydrant is equipped with an additional ball shut-off. This makes it easy to disassemble the upper barrel parts and change the operation pipe under full operating pressure.
