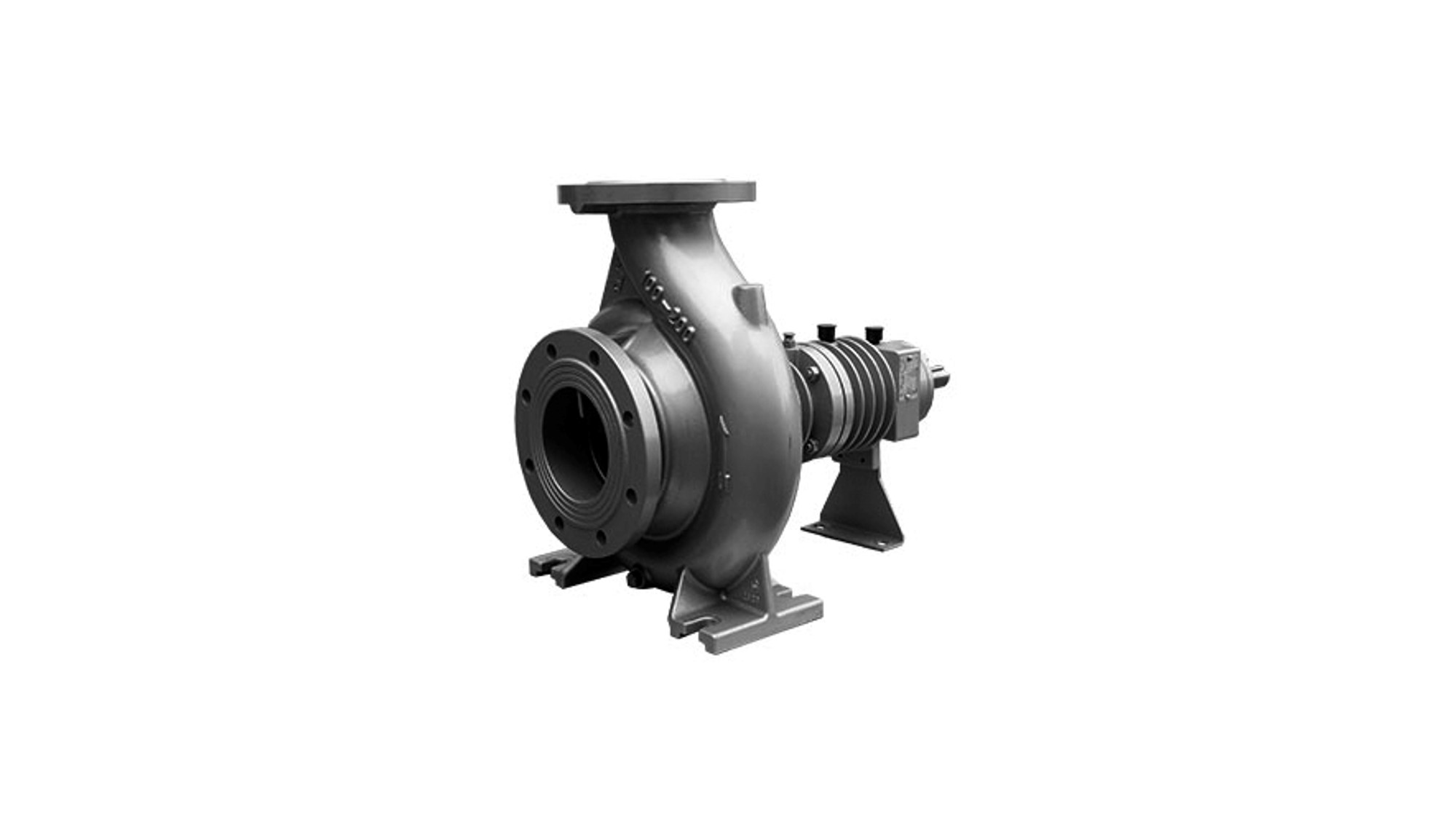

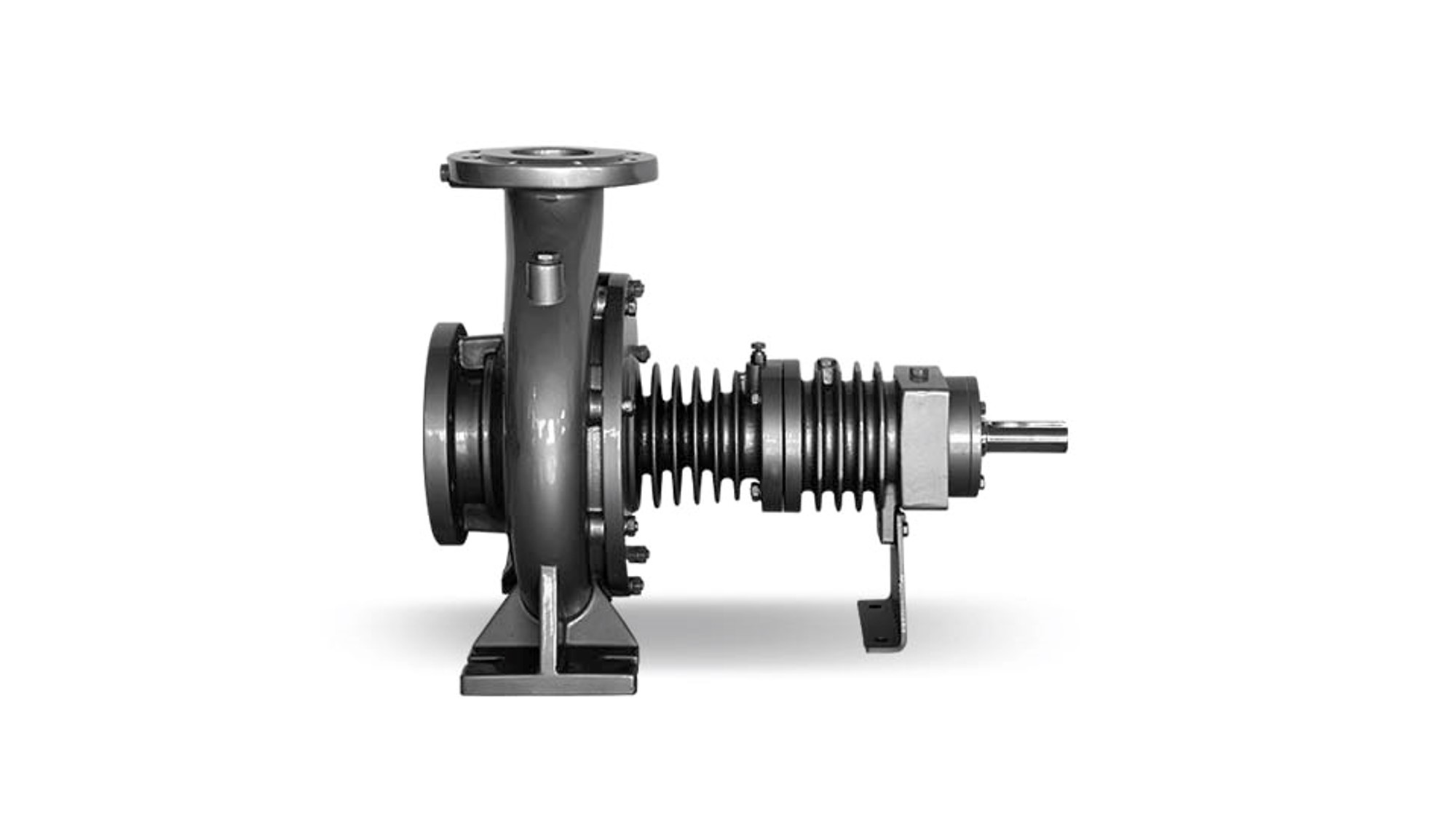

SINGLE STAGE END SUCTION PUMPS CENTRIFUGAL PUMP FOR DIATHERMIC OIL & HOT WATER APPLICATIONS
Maximum capacity: 350 m3/h (1541 GPM) [50 Hz] – 400 m3/h (1761 GPM) [60 Hz]
Maximum delivery head: 110 m (361 ft) [50 Hz] – 160 m (525 ft) [60 Hz]
Maximum liquid temprature: Thermal oil 350° C (662° F),
Hot water 190° C (374° F)
Maximum operating pressure: 16 bar (232 psi)
Maximum speed: 3600 rpm
Discharge Flange: DN 32 – DN 150
Cooling Medhod With Air
DETAILS
- ThermaFlux pump is designed to provide excellent pumping efficiency while helping to ensure durability, ease of maintenance and safe operation. ThermaFlux pump ensures uniform process temperatures while keeping damaging heat away from seal faces and bearings. ThermaFlux pump is designed to require no external cooling when working within the given parameters. The throttle bush, journal bearing and seal placement reduce circulation and temperature along the pump length. This greatly reduces the temperature at the seal face and bearings.
- Typical liquid temperatures of 250° C (482° F) at the pump inlet will be as low as 100° C (212° F) at the seal faces.
USAGE AREAS
