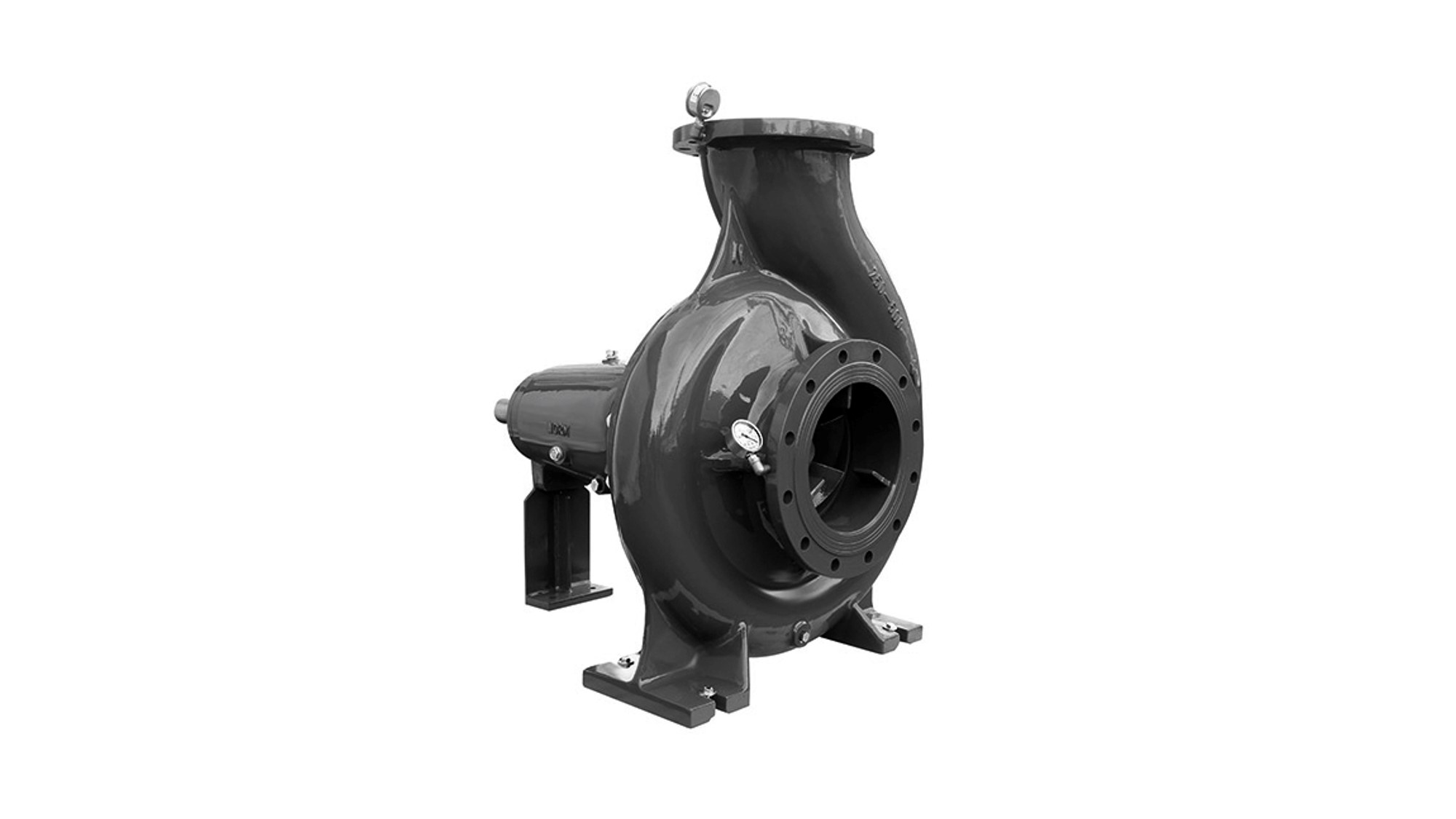

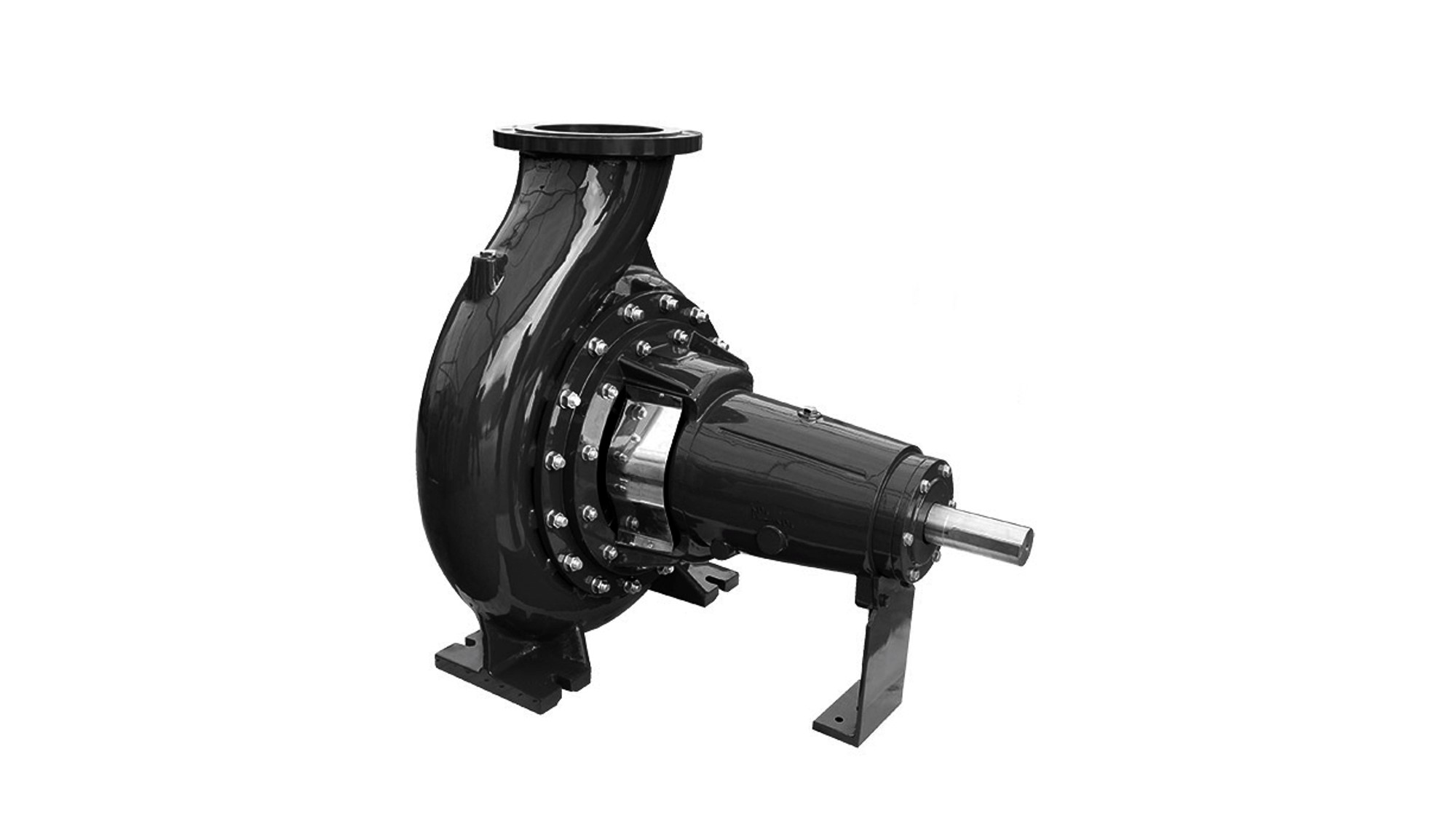

SINGLE STAGE END SUCTION PUMPS
Discharge Flange: DN 32 – DN 250
Capacity: 1700 m³/h
Head: 100 m
Frequency: Three-phase 50 Hz – 60 Hz*
Temperature of Pumped Liquid: From -25 °C to+140 °C
Maximum Operating Pressure: 10 bar (16 bar)*
DETAILS
- GXF series pumps have designed for pumping non-abrasive and small particulars liquids.
- GXF series pump has just one impeller, pump and motor is connecting by coupling. It gives your advantages for easy disassembling.
- Pump Dimensions are according to EN 733 – DIN 24255 standard.
- Suction and discharge flanges according to EN 1092-2 / PN 16.
- GXF series have a closed impeller, impeller blades located between the balancing holes to minimize the axial load is taken in dynamic load balancing.
- Sealing is provided by gland packing. Sealing is provided by also mechanical seal as customer request.
- Easy disassembly to pump and change impeller, bearings, and seals.
- All impellers are statically and dynamically balanced according to ISO 1940 class 6.3.
- In addition to 29 models, 10 complementary models are designed in according to EN 733 standards. The main dimensions of complementary models may different from other manufacturers.
- Direction of rotation is clockwise viewed from the driver end.
- Optionally, pumps can be manufactured with shaft bushings and/or wear rings.
USAGE AREAS
