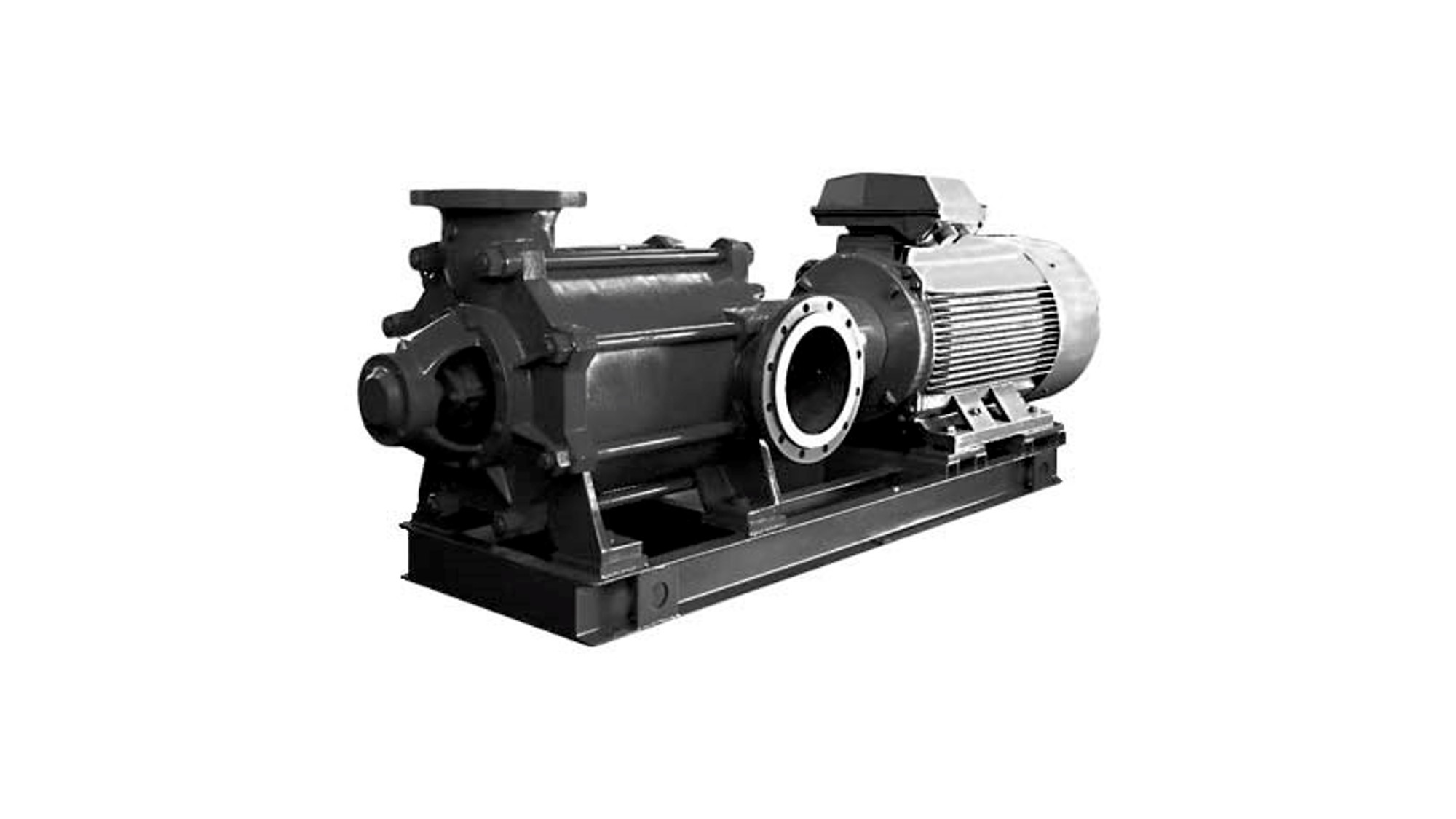

MULTISTAGE PUMPS
Max Capacities 1,100 m3/h / 4,800 USgpm
Max Heads 900 m / 2,950 ft
Pressures Up to 100 bar / 1,450 psi
Temperatures Up to 90 ºC / 194 ºF
Discharge sizes From 25 to 200 mm / 1 to 8 inches
DETAILS
- The C type range is the basic range of our centrifugal ring section multistage pumps. The simplified design, utilizing hydraulically balanced impellers by means of holes into impeller, or by “back to back” impeller execution, provides the optimum pumping solution for medium pressure applications. Pump casing is consisted of suction and discharge housing, middle chambers and bearing brackets. All of the impellers are centrifugal of closed type, and are statically and dynamically balanced.
- The suction and pressure bodies can be rotated for 90° in both directions, as per customer convenience, which enables the pumps to be mounted and adapted to the requirements of the installation. Axial thrust is relieved by means of a drum mounted on the shaft inside the discharge hull, rest of the trust bears one of the roller bearings. The impellers are centrifugal of closed type identically fixed to a shaft, supported on two roller bearings.
